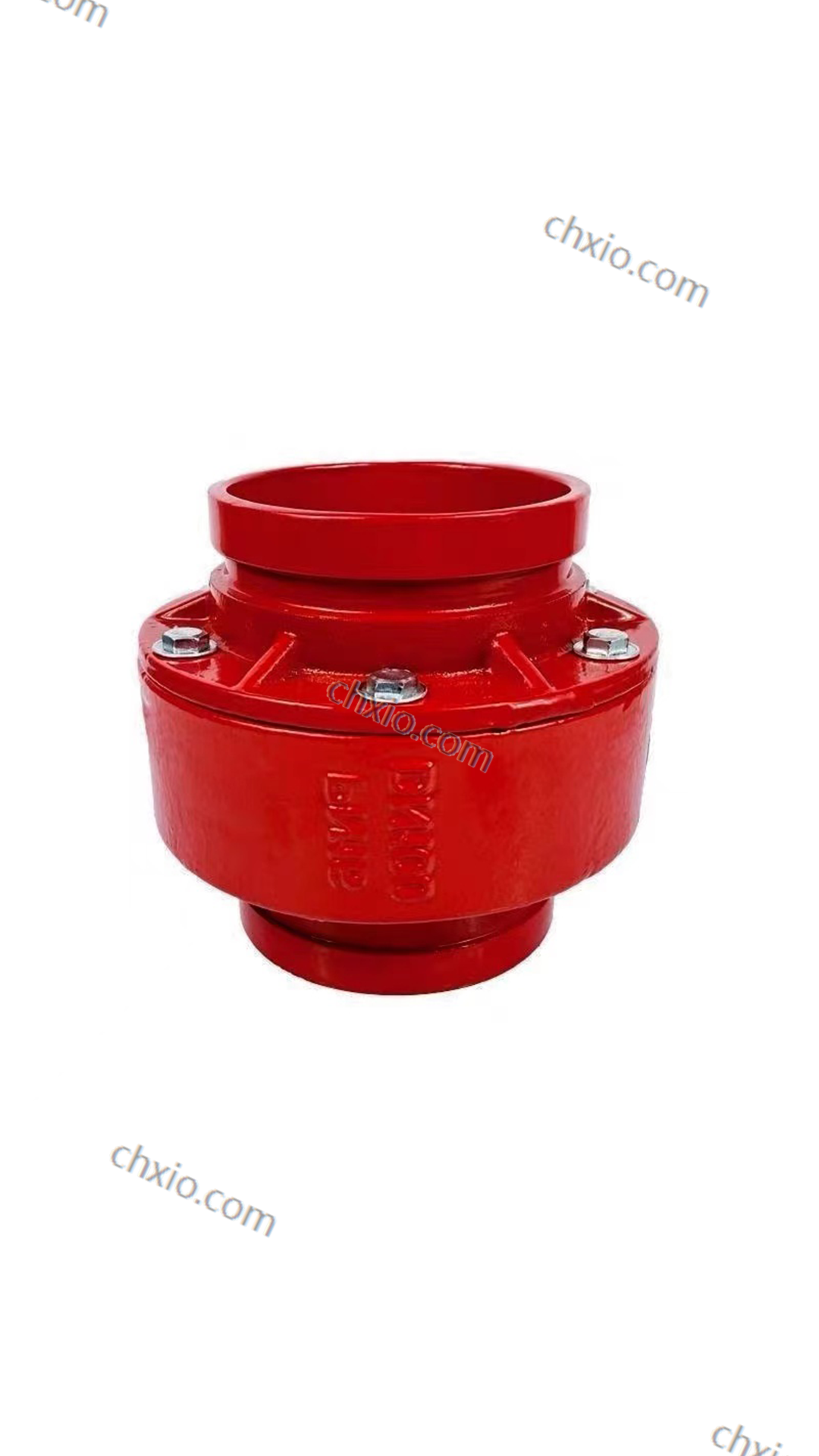

Grooved Silencing Check Valve
Product Features and Applications
Structural Features
grooved connection
Utilizing a grooved connection method facilitates quick and easy installation and removal from the pipeline system without the need for complex tools or procedures, significantly reducing installation time and costs
one-way check function
The valve’s internal disc (or plate) automatically closes to prevent backflow, protecting the equipment in the pipeline system from the effects of reverse flow
silencing design
The valve is designed with a noise reduction structure, typically including a spring-loaded mechanism or streamlined valve disc. These features help reduce the water hammer effect when the valve closes, thereby effectively lowering noise levels.
compact design
The valve features a compact overall structure, taking up minimal space, making it suitable for installation in pipeline systems with limited space
Performance Features
prevent backflow
The primary function of a silent check valve is to prevent backflow of the medium, protecting pumps, valves, and other equipment in the pipeline system from damage caused by reverse flow
significant noise reduction effect
The noise reduction design effectively mitigates the water hammer effect generated when the valve closes, reducing noise in the pipeline system. This makes it particularly suitable for environments that require quiet operation, such as residential areas, hospitals, and schools.
easy installation
The grooved connection method makes valve installation and removal very convenient, making it ideal for pipeline systems that require frequent maintenance or replacement, while also reducing construction costs
easy maintenance
The valve features a simple structure, making it easy to maintain. The valve disc and sealing components can be easily inspected and replaced, reducing system downtime

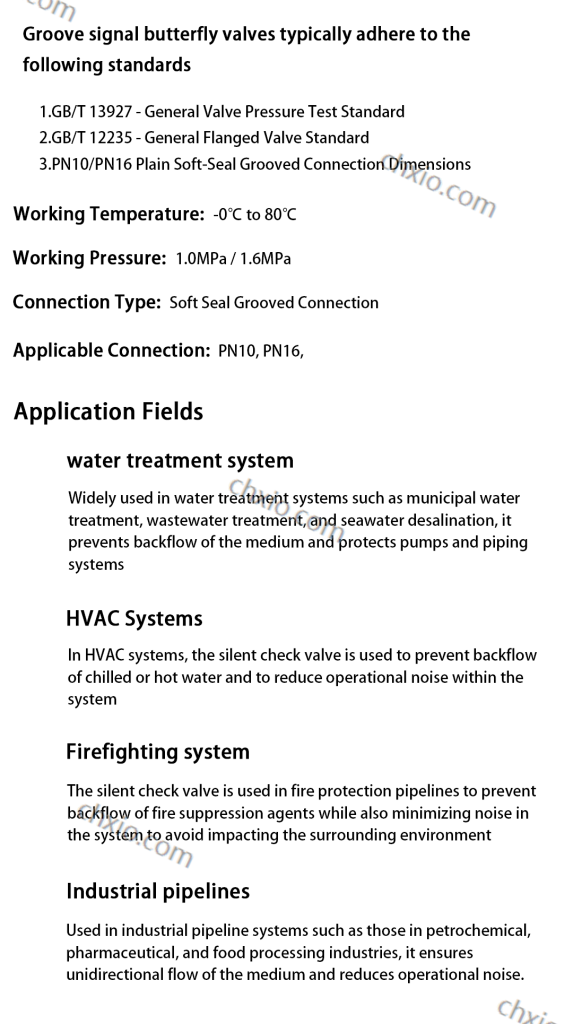

Application Fields
water treatment system
Widely used in water treatment systems such as municipal water treatment, wastewater treatment, and seawater desalination, it prevents backflow of the medium and protects pumps and piping systems
HVAC (Heating, Ventilation, and Air Conditioning) system
In HVAC systems, the silent check valve is used to prevent backflow of chilled or hot water and to reduce operational noise within the system
firefighting system
The silent check valve is used in fire protection pipelines to prevent backflow of fire suppression agents while also minimizing noise in the system to avoid impacting the surrounding environment
industrial pipelines
Used in industrial pipeline systems such as those in petrochemical, pharmaceutical, and food processing industries, it ensures unidirectional flow of the medium and reduces operational noise.
Installation and Maintenance
installation location
Silent check valves are typically installed in critical locations where backflow prevention is necessary, such as at the pump outlet or pipeline branch points. During installation, it is important to ensure that the valve is oriented correctly to ensure proper operation
periodic maintenance
It is necessary to regularly check the valve’s noise reduction device and sealing components to ensure they are in good condition, especially in systems with frequent use. Cleaning or replacement should be performed as needed
Notes
During installation, it is important to keep the pipeline clean and prevent impurities from entering the valve, as they can affect its proper functioning. For systems prone to scaling, regular cleaning is recommended to prevent blockages
