Grooved Signal Butterfly Valve
Product Features and Applications
Structural Features
Groove Connection:
The groove-type signal butterfly valve adopts a groove connection method, making installation quick and convenient, suitable for situations that require frequent maintenance and operation. During installation, the connection can be completed using groove clamps, saving installation time and costs.
Signal Device:
The valve is equipped with mechanical or electrical signal devices. When the opening and closing status of the valve changes, the signal device generates corresponding signals, which can be transmitted to the control center or other monitoring equipment, allowing operators to monitor the valve status in real-time.
Sealing Structure:
The valve typically features a soft sealing design, utilizing sealing materials such as EPDM, NBR, or PTFE. This design allows the valve to adapt to various media and ensures excellent sealing performance, making it particularly suitable for low-pressure systems.
Bidirectional Sealing:
The groove-type signal butterfly valve is designed with a bidirectional sealing feature, ensuring reliable sealing performance regardless of the direction from which the fluid enters the valve. This design enhances the valve’s versatility and reliability in various applications.
Operation Method:
The valve can be equipped with a handle, worm gear, electric actuator, or pneumatic actuator, allowing for selection based on actual application needs. Through the signal device, the operating status can be remotely fed back to the control room, facilitating centralized management.
Performance Features
Remote Monitoring:
The signal device can provide real-time feedback on the valve’s open and closed status, supporting remote monitoring and automated management, especially suitable for systems that require centralized control, such as fire protection and water supply systems.
Easy Installation:
The groove connection method makes the installation and maintenance of the valve very simple, requiring no complex tools or operations, greatly improving construction efficiency.
Reliable Sealing:
The soft sealing design ensures zero leakage performance of the valve in low-pressure systems, and the bidirectional sealing structure allows for flexible media flow without directional restrictions.
User-Friendly Operation:
The valve has a compact structure and flexible operation, making it suitable for pipeline systems that require frequent opening and closing, particularly excelling in applications such as fire protection and HVAC.
Strong Durability:
Utilizing high-quality materials and precision manufacturing processes, the valve possesses good corrosion resistance and mechanical strength, enabling stable operation in harsh environments for extended periods.

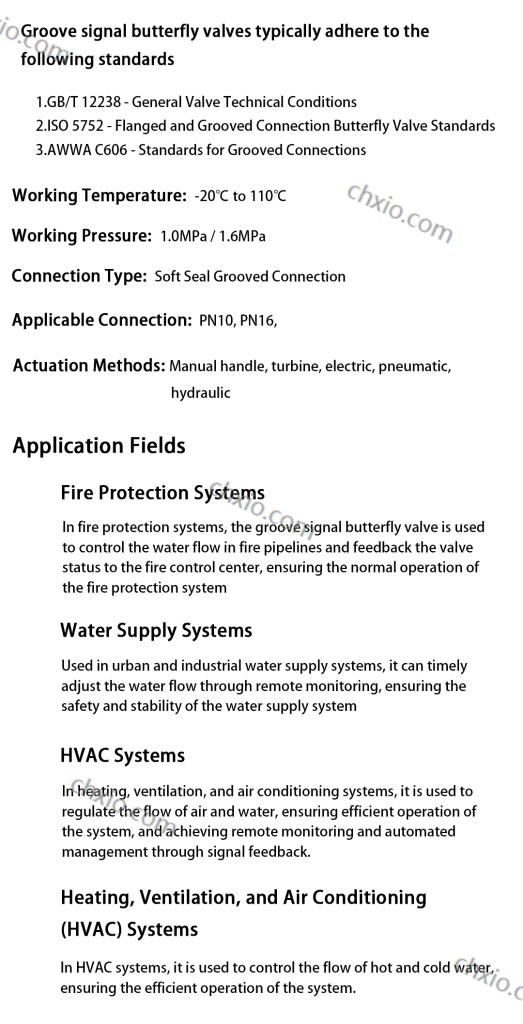

Application Fields
Fire Protection Systems:
In fire protection systems, the groove signal butterfly valve is used to control the water flow in fire pipelines and feedback the valve status to the fire control center, ensuring the normal operation of the fire protection system.
Water Supply Systems:
Used in urban and industrial water supply systems, it can timely adjust the water flow through remote monitoring, ensuring the safety and stability of the water supply system.
HVAC Systems:
In heating, ventilation, and air conditioning systems, it is used to regulate the flow of air and water, ensuring efficient operation of the system, and achieving remote monitoring and automated management through signal feedback.
Industrial Pipelines:
Suitable for various industrial pipeline systems, such as those in the oil, chemical, and metallurgy industries, particularly in situations requiring remote monitoring and automated management.
