Grooved Butterfly Valve-1
Product Features and Applications
Structural Features
Grooved Connection
The grooved butterfly valve connects to the pipeline through a grooved connection. This method eliminates the need for welding or flange bolts, requiring only specialized grooved clamps. This results in a faster installation process and facilitates ease of on-site construction.
Sealing Structure
The grooved butterfly valve features a soft sealing structure, commonly using sealing materials such as EPDM, NBR, or PTFE. This ensures excellent sealing performance and the ability to accommodate a variety of media and operating conditions.
Bidirectional Sealing
The grooved butterfly valve is designed with bidirectional sealing, ensuring tight sealing regardless of the direction of flow. This enhances the valve’s flexibility and reliability in various applications.
Operation Method
The valve can be equipped with a handle, worm gear, electric actuator, or pneumatic actuator. Different operation methods can be selected based on the actual application, meeting various levels of automation requirements.
Performance Features
Easy Installation
The grooved butterfly valve enables quick installation and removal through its grooved connection. The installation process requires no complex tools or procedures, saving both time and cost.
Simple Operation
The valve features a compact structure and lightweight operation, making it suitable for pipeline systems that require frequent opening and closing. It performs exceptionally well, particularly in applications such as firefighting and HVAC.
Reliable Sealing
The soft sealing structure design ensures excellent sealing performance of the valve, making it suitable for low-pressure piping systems and providing a guarantee of zero leakage.
Easy Maintenance
The valve has a simple structure and low maintenance cost. Routine use requires only basic inspection and upkeep, allowing it to maintain stable operation over the long term.
Wide Application Range
The grooved butterfly valve is widely applicable in fields such as firefighting, water supply, wastewater treatment, and HVAC systems. It is suitable for handling various media, including water, air, oils, and chemicals.

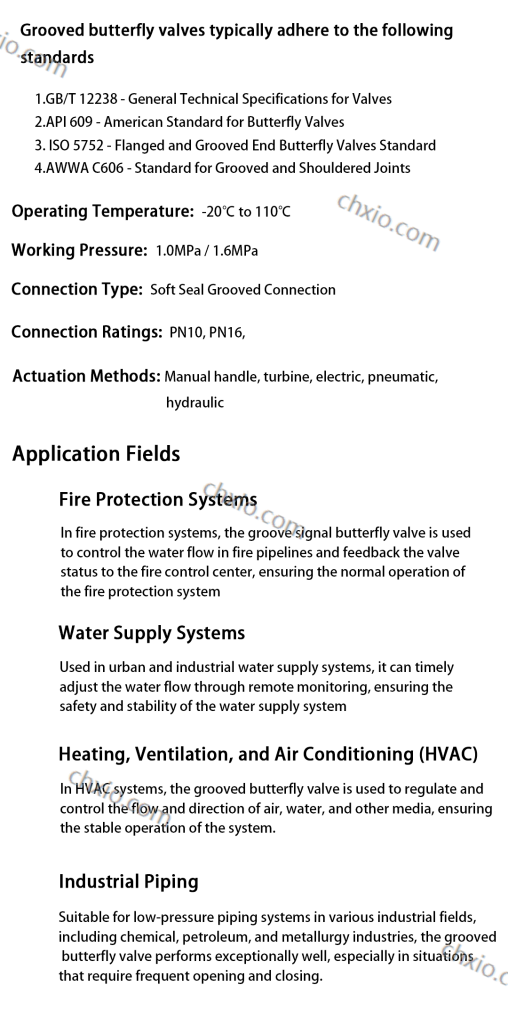

Application Fields
Firefighting Systems
In firefighting water supply systems, the grooved butterfly valve is used to control the flow of water. It offers advantages such as quick installation and simple operation.
Water Treatment
Used in wastewater treatment and water supply pipeline systems, the grooved butterfly valve allows for rapid switching and control of water flow direction, enhancing the operational efficiency of the system.
Heating, Ventilation, and Air Conditioning (HVAC)
In HVAC systems, the grooved butterfly valve is used to regulate and control the flow and direction of air, water, and other media, ensuring the stable operation of the system.
Industrial Piping
Suitable for low-pressure piping systems in various industrial fields, including chemical, petroleum, and metallurgy industries, the grooved butterfly valve performs exceptionally well, especially in situations that require frequent opening and closing.
